Underground Electrical Wiring: Planning & Sizing Guide

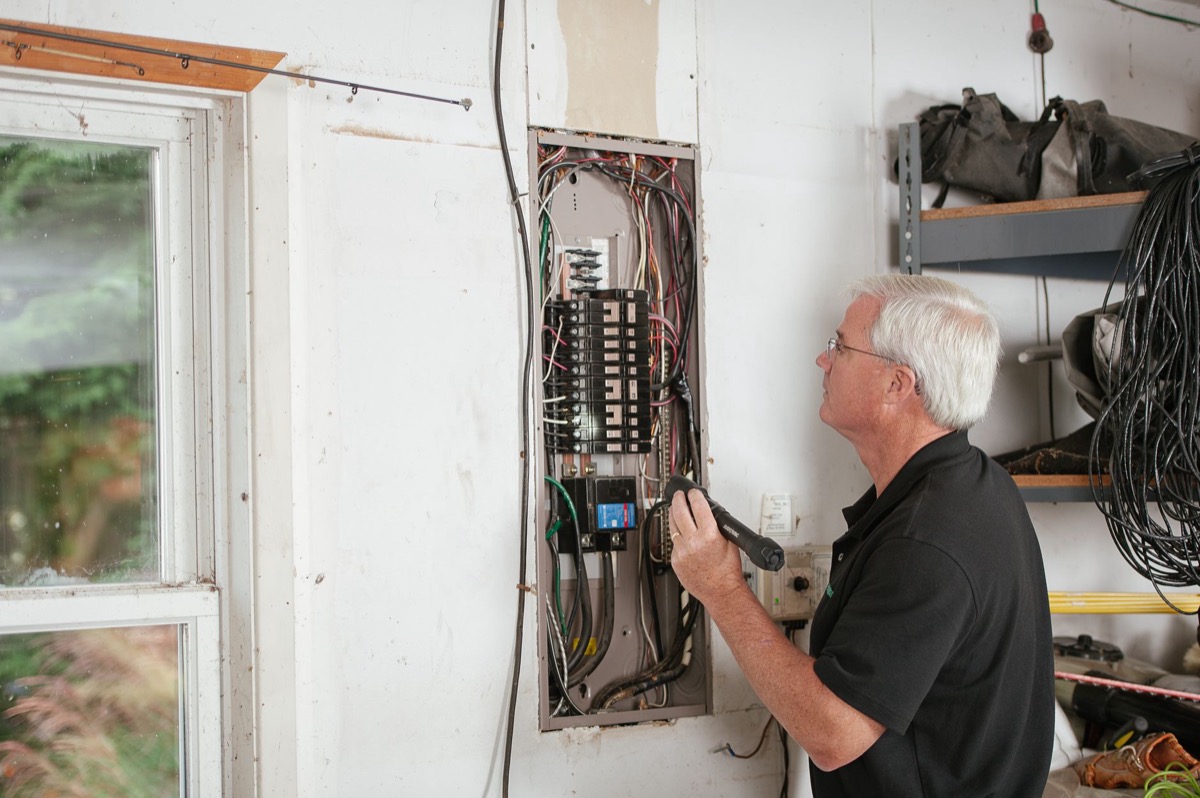

Electrician feeding copper wire through gray PVC conduit toward a residential electrical panel
Photo: Kathleen Austin Kuhn / Pexels

Recent initiatives, such as the "Underground electricity wiring project launched on pilot basis in CM Mann's native village" as reported by The Times of India, highlight a growing interest in modernizing and enhancing infrastructure through underground electrical wiring. This approach offers significant benefits, from improved aesthetics to enhanced protection against weather and accidental damage.

However, planning an underground electrical wire installation involves far more than simply burying a cable. It requires careful consideration of conductor types, insulation, burial depths, and precise calculations for ampacity and voltage drop to ensure safety, reliability, and compliance with electrical codes. This guide will walk you through the essential steps to properly plan and size your underground wiring project, whether for a new landscape feature, an outdoor workshop, or service to an outbuilding.

Key Considerations for Underground Wiring Projects

When bringing electricity underground, several factors differentiate it from indoor or overhead wiring:

  • Environmental Exposure: Underground wires are exposed to moisture, soil corrosives, temperature fluctuations, and potential physical damage from digging.
  • Accessibility: Once buried, wires are difficult and costly to access for repairs or modifications, making proper installation crucial.
  • Code Compliance: Strict regulations govern underground installations, particularly concerning burial depth and wire protection.

Prior to starting any digging, contact your local utility to mark existing underground lines. This is a critical safety step to prevent accidental damage to gas, water, communication, or existing electrical lines.

Choosing the Right Conductors and Insulation

Not all electrical wires are suitable for underground use. The National Electrical Code (NEC) specifies appropriate types based on how they are installed:

  • Direct Burial Cable: For direct burial without conduit, Underground Feeder (UF) cable is typically used. UF cable contains conductors, ground wire, and is encased in a solid, moisture-resistant thermoplastic jacket that can withstand direct contact with soil.
  • Conduit Installations: If you are running wires through conduit underground, the individual conductors (e.g., THWN or XHHW) must be rated for wet locations. The 'W' in THWN indicates suitability for wet conditions. Conduit provides additional physical protection and allows for future wire replacement or upgrades more easily.

Always ensure the cable or individual conductors you select are specifically rated for underground or wet location use to prevent insulation breakdown and potential hazards over time.

Understanding Burial Depth Requirements

Minimum burial depths are critical for protecting underground wiring from damage. These depths vary significantly based on the circuit voltage, type of protection, and location. The National Electrical Code (NEC) Article 300.5 outlines these requirements, which can include:

  • Direct Burial (UF cable): Per NEC Table 300.5, the baseline is 24 inches for direct-buried cable. The same table lists exceptions: a GFCI-protected 120 V, 20 A or less branch circuit may be buried at only 12 inches per NEC Table 300.5, and the depth requirement increases to 18 inches under residential driveways and parking areas. Always read the row and column that match your specific voltage, location, and protection.
  • Rigid Nonmetallic Conduit (PVC): NEC Table 300.5 lists 18 inches as the general minimum, but this also varies by location — typically 12 inches under a residential driveway and as little as 6 inches under a building slab or concrete that is at least 4 inches thick. Check the applicable Table 300.5 row for your conditions.
  • Intermediate or Rigid Metal Conduit (IMC/RMC): Per NEC Table 300.5, metal conduit often allows shallower depths than direct burial because of enhanced physical protection — check the row that matches your voltage and location (some installations permit as little as 6 inches under qualifying conditions).
  • Under Driveways and Streets: Per NEC Table 300.5, depths increase under residential driveways and vehicle traffic areas — commonly 18 inches minimum for many circuits, with deeper requirements under streets.

Always consult your local electrical codes and the most recent edition of the NEC for the exact requirements applicable to your specific project and jurisdiction. Ignoring these depths can lead to dangerous situations and code violations.

Sizing Underground Wire: Ampacity and Voltage Drop

Sizing electrical wire for underground installations involves careful calculation, especially regarding ampacity (the maximum current a conductor can safely carry) and voltage drop (the reduction in voltage over the length of the wire).

  • Ampacity Considerations: Unlike wires in air, underground wires dissipate heat less efficiently. Soil thermal resistivity, ambient soil temperature, and the number of conductors in a conduit can all necessitate derating the wire's ampacity. This means you might need a larger gauge wire underground than you would for the same load run overhead or indoors.
  • Voltage Drop: Long runs of underground wire are particularly susceptible to voltage drop. Excessive voltage drop can lead to inefficient operation of equipment, dim lights, and motor damage. The NEC does not mandate a voltage-drop limit, but its informational notes recommend keeping voltage drop to about 3% or less on a branch circuit (NEC 210.19(A) Informational Note) and 3% on a feeder (NEC 215.2(A) Informational Note), for roughly 5% combined from service to outlet. Since underground runs tend to be longer, staying within these targets often means upsizing the wire gauge.

Accurate calculations for both ampacity and voltage drop are paramount. Factors like the distance, load (amperage), and conductor material (copper vs. aluminum) all play a significant role in determining the correct wire size. Ignoring these factors can lead to overheating, equipment malfunction, or even fire hazards.

Copper THHN ampacity at 75°C by AWG (NEC 310.16)

Copper THHN ampacity at 75°C by AWG (NEC 310.16)Bar chart showing allowable ampacity in amps for six common copper AWG wire sizes at 75 degrees Celsius under NEC Table 310.16 standard conditions14 AWG14 AWG: 20 A20 A12 AWG12 AWG: 25 A25 A10 AWG10 AWG: 35 A35 A8 AWG8 AWG: 50 A50 A6 AWG6 AWG: 65 A65 A4 AWG4 AWG: 85 A85 A
NEC 2023 (NFPA 70) Table 310.16, 75°C copper column. Conditions: insulated conductors in raceway, ≤3 current-carrying conductors, 30°C ambient. These are table ampacities, not overcurrent-protection limits — per NEC 240.4(D), 14 AWG copper is limited to a 15 A breaker, 12 AWG to 20 A, and 10 AWG to 30 A, regardless of the higher 75°C ampacity shown. Values confirmed against site WIRE_TABLE in /src/pages/index.astro (verified June 2026).

Key Takeaways

  • Always identify existing underground utilities before digging to prevent accidents.
  • Select wires specifically rated for underground or wet locations (e.g., UF cable for direct burial, THWN/XHHW in conduit).
  • Adhere strictly to NEC and local code minimum burial depth requirements, which vary by wire type and location.
  • Account for reduced ampacity in underground conditions due to heat dissipation and consider voltage drop for longer runs by upsizing wire gauge.
  • Proper grounding and bonding are crucial for underground installations to ensure safety.

Try It Yourself — Free

To accurately calculate the right wire size for your specific underground electrical wiring project, taking into account voltage drop and ampacity, use our free wire size calculator. For more in-depth guidance on sizing, explore our article on how to size electrical wire.
